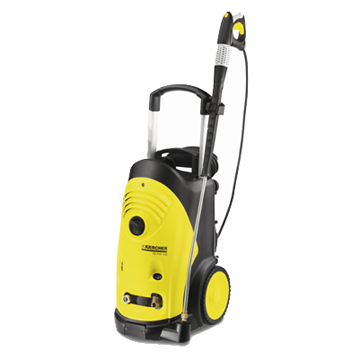

Model: YLAB005
Summary:
Upright compact cold-water high pressure cleaner, high-capacity detergent box, pressure and water flow is adjustable, clean dose is adjustable, architecture by the integration of high strength plastic, compact structure, small.
Standard spare parts:
With soft sheath trigger gun, 10 meters high pressure tube, can rotate 850 mm stainless steel spray gun pole, three hole nozzle, the pressure control switch.
Technical parameters:
Power supply/v / 3/400/50 Hertz
Water flow (adjustable) L/H, 240-700
Pressure (adjustable) 20-175/2 / mpa to 17.5
The maximum water temperature 60 degrees Celsius
Connect the load 5.0 kw
The machine weighs 29.0 kg
Size (length * width * height mm) 375 * 360 * 935
The product description and application:
The smallest three-phase electric cold water high pressure cleaner, vertical design, compact small
.jpg)
Model: YLAB006
Summary:
This super durable type cold water high pressure cleaner, flexibility, 4 extremely durable type water-cooled motor, the strong brass stigma fully guarantee the quality of the machine is excellent, such as machine safety level is higher, at the same time to prevent the possible mistakes in the process of operation.
Standard spare parts:
6 litres of detergent box, 10 meters high pressure tube, axial rotation 1050 mm stainless steel spray gun, nozzle.
Technical parameters:
Power supply/v / 3/400/50 Hertz
Water flow (adjustable) 1000 L/H
Pressure (adjustable) ba/trillion 210/21
The maximum water temperature 60 degrees Celsius
Connect the load 7.8 kw
Machine weight 62 kg
Size (length * width * height mm) 560 * 500 * 1090
The product description and application:
Both pressure and water flow and configuration,
.jpg)
Model: YLAB007
Summary:
Latest upright super durable type cold water high pressure cleaner, water cooled quadrupole three-phase motor; Electronic protection type machine, pump system; Convenient mobile large castor design; No fatigue easily touch the trigger operation, with the pressure of 230 bar and 1000 liters/hour of water flow, become the most valuable choice in similar products on the market.
Standard spare parts:
10 meters high pressure tube, 1050 mm axial rotation stainless steel spray gun, nozzle.
Technical parameters:
Power supply/v / 3/400/50 Hertz
Water flow (adjustable) 1000 L/H
Pressure (adjustable) ba/trillion 230/23
The maximum water temperature 60 degrees Celsius
Connect the load 7.8 kw
Machine weight 62 kg
Size (length * width * height mm) 560 * 500 * 1090
The product description and should be
.jpg)
Model: YLAB008
Summary:
Upright cold water high pressure cleaner, can be directly on the gun to adjust pressure and flow servo gun, pressure switch, trigger gun with soft sheath, the axial rotation of the stainless steel gun, big detergent box, frame by the integration of high strength plastic.
Standard spare parts:
With 10 meters high pressure pipe servo gun, motor protection system with light emitting diode display, axial rotation 1050 mm stainless steel spray gun, 6 litres of detergent box, display window, lubricating oil water flow rate, pressure control switch, karcher GMBH patents high-pressure pipe winding design, three hole contactless rotary nozzle 0/25 degrees / 40 degrees.
Technical parameters:
Power supply/v / 3/400/50 Hertz
Water flow (adjustable) L/H, 500-1000
Pressure (adjustable) ba / 30-250/3-25 mpa
The maximum water temperature
.jpg)
Model: YLAB009
Summary:
Upright cold water high pressure cleaner, can be directly on the gun to adjust pressure and flow servo gun, pressure switch, trigger gun with soft sheath, the axial rotation of the stainless steel gun, big detergent box, frame by the integration of high strength plastic.
Standard spare parts:
Servo gun, with 10 meters high pressure pipe with light emitting diode display of motor protection system, the axial rotating stainless steel 1050 mm gun, 6 litres of detergent box, display window of lubricating oil, water flow rate, pressure control switch, karcher GMBH patents high-pressure pipe winding design, three holes without contact with rotating nozzle 0 degrees / 25 degrees / 40 degrees, powerful spinning nozzle.
Technical parameters:
Power supply/v / 3/400/50 Hertz
Water flow (adjustable) L/H, 500-1000
Pressure (adjustable) ba / 30-250/3-25 mpa
The most
|
