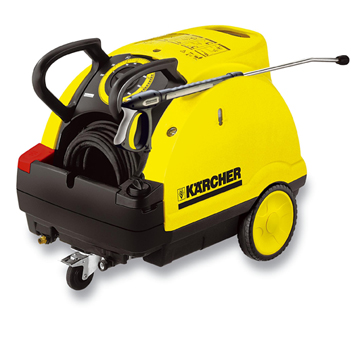

Cold, hot water pressure washer
緊湊型入門級冷、熱水高壓清洗機，清晰的單鍵控制面板，有效防止操作不當；燃料和清潔劑箱總成，使得機器的密封性優良，有效降低噪音；內嵌的閥門能夠針對相應的清潔任務進行清潔劑的精確計量，并施加到高壓噴槍上，有益于環境保護。
The compact class, hot water high-pressure cleaning machine, one touch control panel clear, effectively prevent improper operation; fuel and cleaning agent box assembly, make the machine excellent sealing performance, effectively reduce the noise; accurate measurement of embedded valve to the corresponding task of cleaning cleaning agent, and applied to a high-pressure spray gun, beneficial to environmental protection.
|
Standard spare parts
強力噴嘴，10米高壓管，550mm長不銹鋼噴槍桿，集成油箱與洗滌劑箱，伺服噴槍柄，壓力控制，防纏繞系統。
Strong nozzle, 10 meters high pressure pipe, 550mm long stainless steel spray gun rod, integrated tank and the detergent box, servo gun handle, pressure control, anti winding system.
|
Technical parameters |
|
The power supply
|
Single-phase 230 v / 50 hz
|
|
Water flow
|
550 L/h
|
|
Pressure of work
|
140bar/14Mpa
|
|
Most of the water temperature
|
80℃
|
|
Connected to the load
|
2.5Kw
|
Description and Application
HDS 550C是一款緊湊型入門級冷、熱水高壓清洗機。廣泛應用于工商業領域中車輛與車間的常規清洗等。
HDS 550C is a compact entry-level cold, hot water pressure washer. Widely used in vehicle and shop business in the field of conventional cleaning etc..
|
Fuel consumption
|
2.7Kg/h
|
|
Fuel tank capacity
|
16 L
|
|
Detergent tank capacity
|
8L
|
|
Machine weight
|
84Kg
|
|
Size (length x width x height)
|
940x600x740 mm
|
.jpg)
model:YLAB015
|
Standard spare parts
Powerful nozzle, 10 meters high pressure tube, 550 mm long stainless steel spray gun, integrated tanks and detergent box, the servo gun handle, pressure control, the winding system.
|
Technical parameters
|
|
The power supply
|
Single phase 230V/50Hz
|
|
Water flow
|
550 L/h
|
|
Pressure of work
|
140bar/14Mpa
|
|
Most of the water temperature
|
80℃
|
|
The machine power
|
3.2Kw
|
|
An overview of the
Cold, hot water high pressure cleaner
Hot water high pressure cleaner of the compact entry-level, the price is competitive. Very friendly manipulation of a key, chassis integrated tanks, high pressure storage tank pipe and accessories
|
Fuel consumption
|
3.0Kg/h
|
|
Fuel tank capacity
|
16 L
|
|
Detergent tank capacity
|
8L
|
|
Machine weight
|
84Kg
|
Size (length x width x height)
|
940x600x740 mm
|
|
The product description and application
HDS 551 c is a compact entry-level cold, hot water high pressure cleaner. This machine is the biggest characteristic of light weight, compact size, easy transportation and storage.
The equipment is equipped with air cooling motor at the poles, three axial piston pump, stainless steel piston cylinder head to brass.
A key to friendly control way. The state of low pressure, suction detergent.
The device can be applied to small business, in the field of industrial cleaning vehicles usually cleaning and workshop, etc.
|
.jpg)
model:YLAB016
|
An overview of the
|
|
Cold, hot water high pressure cleaner
Compact cold, hot water high pressure cleaner. Very friendly manipulation of a key, chassis integrated tanks, high pressure storage tank pipe and accessories.
|
|
Standard spare parts
Powerful nozzle, 10 meters high pressure tube, can rotate 1050 mm long stainless steel spray gun, SDS damping system, integrated tanks and detergent box, the servo gun handle, pressure control, the winding system.
|
Technical parameters
|
|
The power supply
|
單相230V/50Hz
|
|
Water flow
|
290-550 L/h
|
|
|
30-140bar/3-14Mpa
|
|
Most of the water temperature
|
155/80℃
|
|
The machine power
|
3.2Kw
|
|
Fuel consumption
|
3.0Kg/h
|
|
Fuel tank capacity
|
16 L
|
|
Detergent tank capacity
|
8L
|
|
Machine weight
|
94Kg
|
Size (length x width x height)
|
940x600x740 mm
|
|
The product description and application
HDS 558 c is a hot water high pressure cleaner of the compact. This machine is the biggest characteristic of light weight, compact size, easy transportation and storage.
The equipment is equipped with air cooling motor at the poles, three axial piston pump, stainless steel piston cylinder head to brass.
|
|
| |
|
