An overview of the
|
|
Cold, hot water high pressure cleaner
Economy of three-phase electricity and hot water high pressure cleaner of the compact. Very friendly manipulation of a key, chassis integrated tanks, high pressure storage tank pipe and accessories.
|
|
Standard spare parts
Powerful nozzle, 10 meters high pressure tube, can rotate 1050 mm long stainless steel spray gun, exchangeable phase plug, SDS damping system, integrated tanks and detergent box, the servo gun handle, pressure control, the winding system.
|
Technical parameters
|
|
|
three-phase
400V/50Hz
|
|
|
300-650 L/h
|
|
|
30-160bar/3-16Mpa
|
Most of the water temperature
|
155/80℃
|
|
|
4.5Kw
|
|
|
3.7Kg/h
|
|
|
16 L
|
|
|
8L
|
|
|
94Kg
|
Size (length x width x height)
|
940x600x740 mm
|
|
The product description and application

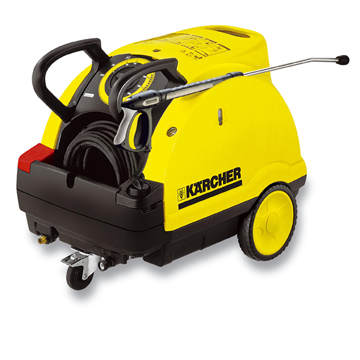

HDS 698 c is a economic three-phase electricity and hot water high pressure cleaner of the compact. This machine is the biggest characteristic of light weight, compact size, easy transportation and storage.
The equipment is equipped with air cooling motor at the poles, three axial piston pump, stainless steel piston cylinder head to brass.
A key to friendly control way. The state of low pressure, suction detergent.
The device can be applied to small business, in the field of industrial cleaning vehicles usually cleaning and workshop, etc.
|
.jpg)
model:YLAB018
|
An overview of the
|
|
Economy of three-phase electricity, hot water high pressure cleaner of the compact, a key control, servo control, simple operation, storage tank chassis integrated tanks, high pressure pipe and accessories.
|
|
Standard spare parts
Powerful nozzle; 10 meters high pressure pipe; Can rotate 1050 mm stainless steel spray gun rod; Servo control; SDS suspension system; With soft pads saving type spray gun
|
Technical parameters
|
|
|
3/400/50 ~/V/HZ
|
|
|
350-750 L/H
|
|
|
30-180bar/3-18Mpa
|
Most of the water temperature
|
155/80℃
|
|
The product description and application
The machine is light weight, compact size, easy to transport and storage, are widely used in small and medium sized business, in the field of industrial vehicles usually clean and workshop, etc.
|
The machine power
|
5.6KW
|
|
|
4.2kg/h
|
|
|
16 L
|
|
|
94 Kg
|
Size (length x width x height)
|
940*600*740mm
|
.jpg)
model:YLAB019
|
An overview of the
|
|
Cold, hot water high pressure cleaner
Intermediate cold, hot water high pressure cleaner. Very friendly manipulation of a key, chassis integrated tanks, high pressure storage tank pipe and accessories.
|
Standard spare parts
帶指示燈的不銹鋼控制面板，帶陶瓷活塞套的三活塞軸泵，強(qiáng)力噴嘴，10米高壓管，可旋轉(zhuǎn)1050mm長不銹鋼噴槍桿，可換相插頭，SDS減震系統(tǒng)，集成油箱與洗滌劑箱，伺服噴槍柄，壓力控制，防纏繞系統(tǒng)，尾氣排放溫控，排氣口不銹鋼圈
Lights with the stainless steel panel, three piston pump, with ceramic piston sleeve strong nozzle, 10 meters high pressure tube, rotary 1050mm long stainless steel spray gun rod, can change the phase plug, SDS damping system, integrated tank and the detergent box, servo gun handle, pressure control, anti winding system, exhaust gas temperature control the stainless steel ring, vent
|
Technical parameters
|
|
|
three-phase 400V/50Hz
|
|
|
470-1000 L/h
|
|
|
30-180bar/3-18Mpa
|
Most of the water temperature
|
155/80℃
|
|
|
6.8Kw
|
|
|
6.9Kg/h
|
|
|
25 L
|
|
|
20L
|
|
|
133Kg
|
Size (length x width x height)
|
1285x690x835 mm
|
|
The product description and application

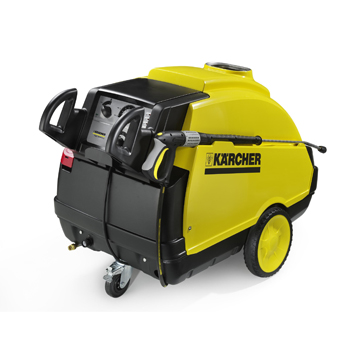

HDS 895 M ECO is an intermediate cold, hot water high pressure cleaner.
With upright and high efficiency heating coils boiler ensures that the extremely high heat exchange efficiency, but also reduce the exhaust emissions.
Friendly control interface. The state of low pressure, suction detergent.
The device can be used in the medium in the field of commercial, industrial, agricultural and municipal cleaning vehicles and the artifacts usually cleaning and so on.
|
|
| |
|
