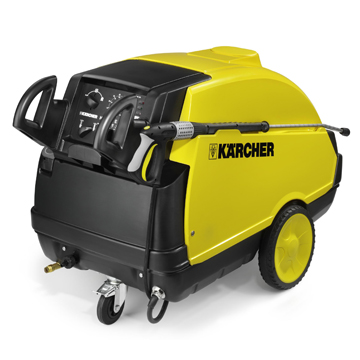

An overview of the
|
|
Cold, hot water high pressure cleaner
Senior cold and hot water high pressure cleaner. Very friendly interface, fuck do chassis integrated tanks, high pressure storage tank, pipe and accessories motor overheating and lack of protection.
|
|
Standard spare parts
Stainless steel control panel with pilot light indication, ceramic piston set three axial piston pump, nozzle, 10 meters high pressure tube, can rotate 1050 mm long stainless steel spray gun, can be in phase plug, SDS damping system, integrated tanks and detergent box, the servo gun handle, pressure control, the winding system, exhaust temperature, vent stainless steel ring, two integrated detergent box.
|
Technical parameters
|
|
The power supply
|
three-phase
4000V/50Hz
|
|
Water flow
|
600-1200 L/h
|
|
Pressure of work
|
30-180bar/3-18Mpa
|
|
Most of the water temperature
|
155/80℃
|
|
The machine power
|
8.2Kw
|
|
Fuel consumption
|
8.3Kg/h
|
|
Fuel tank capacity
|
25 L
|
|
Detergent tank capacity
|
20 L+17 L
|
|
Machine weight
|
155Kg
|
|
Size (length x width x height)
|
1285x690x835 mm
|
|
The product description and application
HDS 1195 S ECO is a senior of cold and hot water high pressure cleaner.
With upright and high efficiency heating coils boiler ensures that the extremely high heat exchange efficiency, but also reduce the exhaust emissions.
Friendly control interface. The state of low pressure, suction detergent.
The equipment is especially suitable for cleaning trucks, construction machinery, and public transport vehicles. Because the two detergent is integrated in the machine box, all can easily remove the stains of different ph, and don't need to replace the detergents.
|
.jpg)
model:YLAB021
|
An overview of the
|
|
Cold, hot water high pressure cleaner
Electric heating hot water high pressure cleaner. 3 cases of boiler heating system, very friendly interface, fuck do chassis integrated tanks, high pressure storage tank pipe and accessories
|
|
Standard spare parts
Electric heating, zero emissions!!!!!!!!!!! Stainless steel control panel with pilot light indication, ceramic piston set three axial piston pump, nozzle, 10 meters high pressure tube, can rotate 1050 mm long stainless steel spray gun, can be in phase plug, SDS damping system, integrated tanks and detergent box, the servo gun handle, pressure control, the winding system, two integrated detergent box.
|
Technical parameters
|
|
The power supply
|
三three-phase
400V/50Hz
|
|
Water flow
|
300-750 L/h
|
|
Pressure of work
|
30-150bar/3-15Mpa
|
|
The water temperature
|
80/ 35/45 ℃
|
|
The machine power
|
5.6+ 12/24Kw
|
|
Detergent capacity
|
25+20 L
|
|
Detergent tank capacity
|
25L+20L
|
|
Machine weight
|
100Kg
|
|
Size (length x width x height)
|
1285x690x835 mm
|
|
The product description and application
HDS 801 kw E 12/24 is a electrical heating hot water high pressure cleaner.
Due to its characteristics of the zero emission, applicable to the exhaust emission is not permitted in many occasions, such as hospitals, supermarkets, pharmaceutical, food processing plants, and so on.
High-speed heating water tank and the hot water tank is separate. High-speed heating water tank capacity is 19 liters, 24 kw type can be water temperature rise to 60 ℃ in 2.5 minutes. Required by the heated water flows into 36 litres of hot water tank can at any time. The water tank is made of stainless steel.
Because the two detergent is integrated in the machine box, all can easily remove the stains of different ph, and don't need to replace the detergents.
|
.jpg)
model:YLAB022
|
An overview of the
|
|
Cold, hot water high pressure cleaner diesel engine type, with the installation of antiscale and low oil level control system, the pressure and flow can be adjusted unlimited, can use cleaner, high pressure condition machine which has two kinds of manual and electric startup mode.
|
|
Standard spare parts
Prevent twisting AVS system, trigger gun with soft sheath, powerful nozzle, servo control, solid stainless steel stents
|
Technical parameters
|
|
drive
|
YanmarThe diesel engine
|
|
|
450-900 L/H
|
|
Pressure of work
|
40-200bar/4-20Mpa
|
|
The highest water temperature
|
140/80℃
|
|
|
The machine power
|
7.4KW/10.0HP
|
|
|
5.6kg/h
|
|
|
185 Kg
|
Size (length x width x height)
|
1130*750*855mm
|
|
The product description and application
Efficient diesel engines, you can get strong high pressure jet flow, is the best choice for your field cleaning, can be widely used in factories, construction companies, farm, forestry, petroleum chemical industry and municipal sanitation, etc.
|
|
| |
|
